5" Chipping Capacity
BX52RHP
Overview:

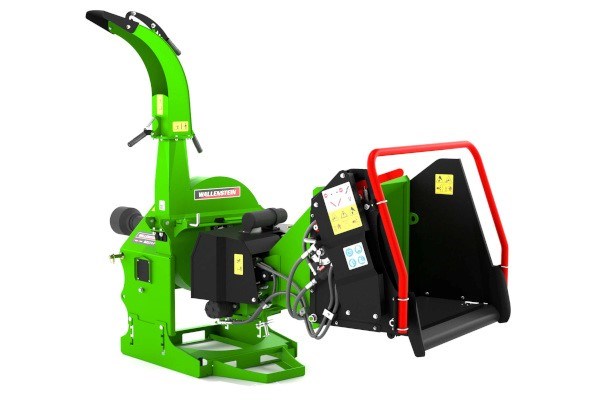

The new BX52RHP hydraulic feed wood chipper comes with a built-in PTO power pack eliminating the need for hydraulics on your compact tractor. Simply hook up to your PTO to power the dual hydraulic rollers. With a 5" chipping capacity, it will handle all your rural and fence line projects with ease.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Adjustable Discharge Chute
Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.
Adjustable Ski Base
Adjust the chipper height to match the PTO height on your tractor.
Dual Driven Hydraulic Rollers
Hydraulically powered top and bottom feed rollers grip and pull brush directly into the chipper.
Fold Up Feed Hopper - No Tools
For easy transport. No tools required.
Hydraulic Power Pack
Oversized Heavy Duty Rotor
Extra large chipper intake backed up by extra large rotor spinning with high momentum.
Positional Discharge Deflector
The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired.
Reversible Rotor Knives
Standard reversible rotor knives double the longevity of your knives.
Safety Control Bar
Forward/reverse control with two stop positions.
Shearbolt Protected PTO Drivetrain Included
Move on from a power spike by simply replacing a single shear bolt.
Twig Breaker
The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.
Wide Infeed Opening
Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required.
Specifications
| Feed System | Dual Hydraulic Roller |
| Chipper Infeed Opening | 5" x 10" (13 cm x 26 cm) |
| Drive System | PTO Direct Drive |
| Chipping Capacity | 5" (13 cm) |
| Engine HP Range | 40 - 55 |
| On-Board Intelligence | n/a |
| Chipper Type | Disc |
| Required Hydraulic Flow | Built-in Power Pack |
| Chipper Hopper Opening | 35" x 30" (89 cm x 76 cm) |
| Number of Chipper Knives | 4 |
| Rotor Diameter | 25" (63 cm) |
| Rotor Weight | 125 lbs (57 kg) |
| Discharge Chute Height | 74" (188 cm) |
| Discharge Chute Rotation | 360° |
| Rated RPM | 540 - 1000 |
| PTO Height | 22" - 27" (55 cm - 69 cm) |
| Total Weight | 845 lbs (384 kg) |
| Dimensions Open (LxWxH) | 80" x 67" x 74" (204 cm x 171 cm x 188 cm) |
| Dimensions Folded (LxWxH) | 62" x 61" x 74" (158 cm x 155 cm x 188 cm) |
| Mounting System | Cat I, iMatch™ & Quick Hitch Compatible |
