Horizontal/Vertical Towable/Self-Contained
WXT20V
Overview:

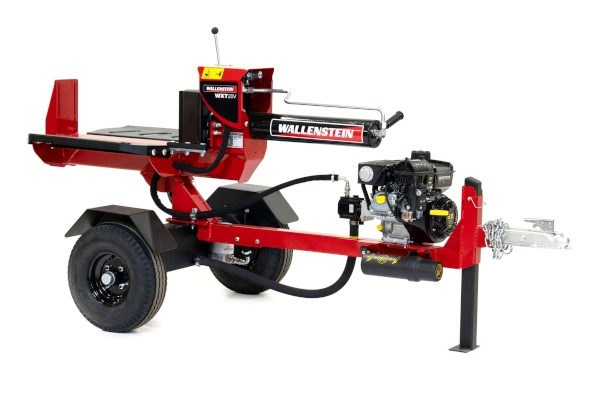

20 ton split force, the WXT20V horizontal/vertical towable log splitter is designed with a wide wedge which makes that wood block "pop" early in the split process. The vertical position helps with those heavy logs eliminating the need to lift them up onto the splitting bed. Great for use on your rural and woodlot properties or for any rental business, this splitter is built for everyday use.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Direct Pressure
Full splitting force is always applied because the cylinder is directly inline with the log, powering through the toughest wood with ease.
Hands Free Return
Switched to reverse, the wedge returns to the start position hands free and then automatically clicks back to neutral.
Two Stage Hydraulic Pump
Maximize your efficiency with the 2-stage pump that moves quickly and splits powerfully.
Vertical and Horizontal splitting
Quickly and easily switch into the vertical position to split logs too large to lift onto the splitting bed.
Wide Wedge
Wide wedge spreads and pops the log in a short distance, reducing cycle time.
Specifications
| Split Force | 20 Ton |
| Engine | Vanguard® 6.5 hp (203 cc) |
| Split Opening | 24" (61 cm) |
| Orientation | Horizontal / Vertical |
| Average Splitter Cycle Time | 6.44 Seconds |
| Full Cycle | 12.88 Seconds |
| Cylinder Diameter | 4" (10cm) |
| Wedge Height | 9.5" (24 cm) |
| Bed Height | 27.5" (69.85 cm) |
| Tires | 18.2" (46.23 cm) |
| Hitch | 2" Ball |
| Tongue Weight | 64.7 lbs (29 kg) |
| Total Weight | 480 lbs (218 kg) |
| Dimensions (LxWxH) | 97" x 43.2" x 48.8" (246 cm x 110 cm x 124 cm) |
| Hydraulic Capacity | 3.7 US Gal (14 l) |
