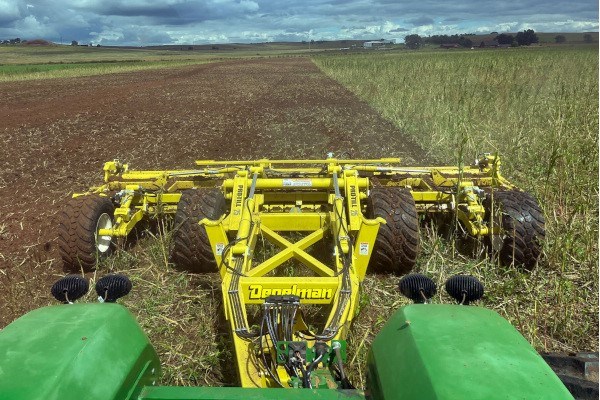

Pro-Till 25
PTL25
Overview:
Superior Tri-Fold Technology
Folds up to a narrow 14' 11" wide and 12' tall in transport mode.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Stability You Can Feel
Engineered for smoother operation thanks to refined hinge placement, smart weight distribution, and wing wheels that stay grounded — even during lifts and headland turns. More flotation. More stability. Less stress.
Optimized for the 200hp to 400hpTractor Range
Bridging the gap between our PT20 and PT30, the Pro-Till 25 is perfectly matched for mid-size horsepower — pulling lighter and smarter than a PT26 without sacrificing performance.
What Makes the Pro-Till 25 a Game Changer? Tri-Fold Frame = Triple the Advantage
With three evenly sized sections, the Pro-Till 25 contours the ground like never before and matches the working depth of the larger Pro-Till 30/36.
Low Pressure, High Performance
Equipped with VF 389 tires, which can be operated at 30% lower inflation than a traditional flotation tire, the Pro-Till 25 allows for reduced soil compaction and better field integrity — because agronomics matter.
Additional High Performance Features
True Greaseless Technology
Degelman Industries is the only company to offer true greaseless technology. Other companies use pins that don't take grease and call it a day. The all-new Degelman Pro-till 25 offers an exclusive self-lubricated, zero maintenance bushing which is manufactured from a friction liner applied on a glass fiber structure. Combined with our over-sized electroless plated nickel pin, which at 2.5" in diameter, make them the largest on the market by over 60%.
Built Tougher Where It Counts
Optional HD arms for 24” discs make the Pro-Till 25 ready for aggressive ground engagement and deeper penetration.
Specifications
| Model | PTL25 |
| Transport Height (Low c/w Rubber Roller) | 12'8" |
| Transport Height (High c/w Rubber Roller) | 13' |
| Transport Height (Low c/w Cage Roller) | 12' |
| Transport Height (High c/w Cage Roller) | 12'-6" |
| Transport Length | 20'-11" |
| Field Length | 26'-4" |
| Wheel Base | 11'-4" |
| Transport Width (High Position) | 13'-9" |
| Transport Width (Low Position) | 14'-11" |
| Weight (c/w rubber roller, scraper & 20" discs) | 25,500 lbs |
| Hitch Weight | 6,000 lbs |
| Number of Discs (center) | 20 |
| Number of Discs (per wing) | 19 |
| Roller Size (center) | 8'-2" |
| Roller Size (wing) | 8'-2" |
| Model | PTL25 |
| Disc Arm Mounting | Rubber Torsion - 4 Elements per Arm |
| Disc Spacing | 5" Overall Spacing (10" Spacing per Row) |
| Tire Size Center | 560/50R22.5 VF |
| Tire Size Wing | 500/45R22.5 VF |
| Transport Cylinder | 5x 40 x 2in - Pin Eye c/w composite bushings & seals |
| Wing Cylinder | 4 x 28 x 2in - Pin Eye c/w composite bushings & seals |
| Wheel Depth Master Cylinder | 4.25 x 8 x 2in - Pin Eye c/w composite bushings & seals |
| Wheel Depth Slave Cylinder | 3.75 x 8 x 2in - Pin Eye c/w composite bushings & seals |
| Roller Depth Master Cylinder | 4.25 x 8 x 2in - Pin Eye c/w composite bushings & seals |
| Roller Depth Slave Cylinder | 3.75 x 8 x 2in - Pin Eye c/w composite bushings & seals |
| Hydraulic Jack Cylinder | 4 x 12 x 2in - Pin Eye c/w composite bushings & seals |
| Working Depth | 8" c/w 20" discs or 9" c/w 22" discs |
| Hydraulic Jack | Standard |
| Safety Lights | Standard |
| Soil Deflector | Standard |
