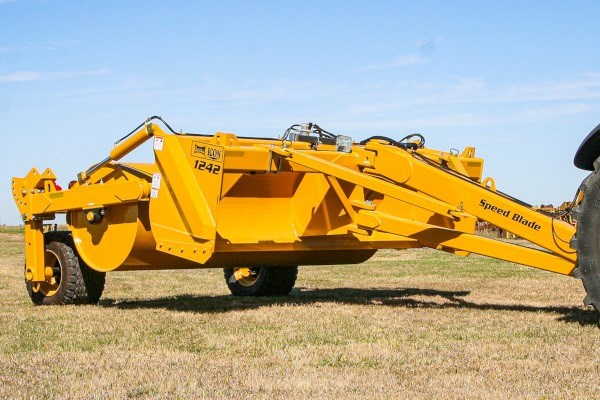

SPEED BLADE
1242
Overview:
Moving to the next jobsite? The hitch folds much easier and quicker than competitive units reducing the transport width to 11’6”. The best part? One-man can take care of this operation further increasing jobsite productivity.
The Speed Blade is available in working widths of 12’ and 16’. Whether just grading or leveling jobsites or firmly packing haul roads, the Speed Blade has the toughness and durability to get the job done.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 12′ and 16’ Working Widths for Efficient Jobsite Performance
- Easy, One-Man Operation for Preparing Unit for Transport
- Ability to Use One Power Unit for Maintaining Haul Roads
- Seal Jobsite Prior to Rain for Faster Return
- Minimize Driver Fatigue
- Reduce Wear and Tear on Equipment
- Increase Jobsite Productivity with Faster Haul Speeds
Specifications
| Product Attributes | 1242 |
| Approximate Weight (With Empty Drum) | 10,400 lbs. (4,717 kg) |
| Working Width | 12 ft. 0 in. (3.7 m) |
| Overall Width | 12 ft. 6 in. (3.8 m) |
| Overall Length w/o Wheel Option | 21 ft. 0 in. (6.4 m) |
| Overall Height | 4 ft. 0 in. (1.2 m) |
| Folded Transport Width w/o Optional Wheels | 10 ft. 6 in. (3.2 m) |
| Folded Transport Width w/ Optional Wheels | 11 ft. 6 in. (3.5 m) |
| Bowl Dimensions | 12 ft. W x 42 in. T x 42 in. D (3.7 m x 1.1 m x 1.1 m) |
| Bowl Capacity | 5.5 yards (4.2 m³) |
| Maximum Cutting Depth | 6 in. (152 mm) |
| Replaceable Cutting Edge | 0.5 in x 6 in. (13 mm x 152 mm) |
| Clearance Under Blade (Fully Raised) | 12 in. (305 mm) |
| Drum Capacity | 775 gallons (2.9 kl) |
| Drum Dimensions | 0.5 in. x 42 in. x 11 ft. 7 in. (13 mm x 1.1 m x 3.5 m) |
| Hydraulic Lift Cylinders | (2) 4 in. x 18 in. (102 x 457 mm) with 2 in. (51 mm) Rods |
| Bearings | (2) 3 in. (76 mm) Double Tapered Pillow Block |
| Articulating Ball Hitch / Pintle Hitch (Standard) | Cat. III / Cat. IV / Cat. V |
| Optional Transport Lift Wheels | (2) 480/45R x 17 Radial Tires |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
