Pull-Type Graders
1432
Overview:

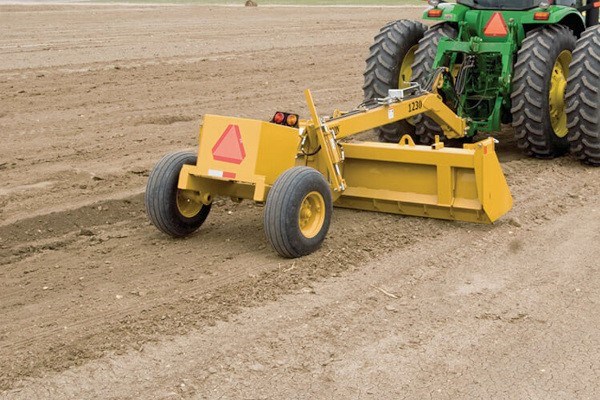

Clean ditches, rebuild terraces, grade roads, move snow, dig irrigation ditches, level fields and scrape feedlots all with the ICON Pull-Type Grader line-up
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Three-Way Hydraulic Operation to Raise/Lower, Tilt, and Angle
- Integral Break-A-Way Valve on Blade for Unit Protection: 12’ – 2,500 lbs.; 16’ – 3,100 lbs.
- Fold Down Box Ends on Blade
- 12.5L x 15-12 Ply Tires on 1230
- 19L x 16.1 Tires on 1432 & 1632
- Models 1432RS & 1632RS Available with Rear Steering (Requires Additional Remote Circuit)
- Pintle Swivel Hitch
- Yellow Industrial Paint
- Safety Warning Lights
Specifications
| Product Attributes | 1432 |
| Approximate Weight (With Empty Weight Box) | 5,100 lbs. (2,313 kg) |
| Working Width | 14 ft. 0 in. (4.3 m) |
| Transport Width | 9 ft. 10 in. (3.0 m) |
| Transport Width (Narrow) | 8 ft. 6 in. (2.6 m) |
| Transport Length | 23 ft. 0 in. (7.0 m) |
| Transport Clearance | 18 in. (457 mm) |
| Blade Size | 14 ft x 32 in. (4.3 m x 813 mm) |
| Cutting Edge | 6 in. (152 mm) Hardened Steel |
| Hitch | Pintle Swivel Hitch |
| Tire Size | 19L x 16.1-12 Ply |
| Spindle Size | 3 in. (76 mm) |
| Wheel Hubs | 8-Bolt, 8,000 lbs. (3,629 kg) |
| Hydraulic Circuits Required | 3 |
| Blade Swing Cylinder | (2) 5 in. x 24 in. (127 x 610 mm) |
| Tilt Cylinder | (1) 4 in. x 12 in. (102 x 305 mm) |
| Raise/Lower Cylinder | (1) 4 in. x 16 in. (102 x 406 mm) |
| Rear Steer Cylinder | N/A |
| Weight Box | 0.6 yd Concrete |
| Snow/Dirt Skid | Standard |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Horsepower Requirements | 10 to 20 HP (8 to 15 kW) per Foot |
