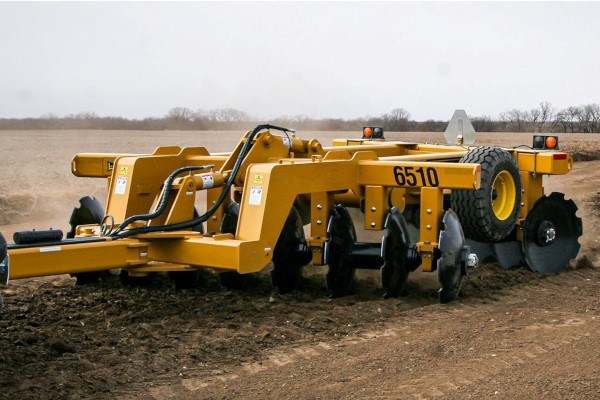

Landoll 6510

Double tap to zoom

Construction Disc

6510

Overview:

DURABLE AND DEPENDABLE

The 6510 is not a modified agricultural offset disc. This is the construction disc that contractors have asked for. It’s just the right size to fit the niche market that other manufacturers have over looked. If you need a tool that was designed with the user in mind with maximum durability built-in, look no further than the 6510 Construction Disc from ICON.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

10’ 9” Working Width
Welded One-Piece Main Frame with ½” Wall x 8” x 8” and 8” x 6” Members
Heavy-Duty 5 ½” Lift Axle with 1” Wall Thickness
UHMW Lift Axle Bearings
32” x 10 mm or 36″ x 12 mm Notched Disc Blades Spaced at 17 1/2”
20 Degree Front Blade Angle
18 Degree Rear Blade Angle
719 lbs. per Blade
Solid 8 ½” Diameter Cast Spacer Spools
Round 2 1/2” Gang Bolt with Nuts on Both Ends
Oil Bath Bearings
4 1/2” Cylinders Throughout
4,300 PSI Hydraulic Hoses
Rigid Cat. IV Hitch with Slotted Hole and 360 Degree Swivel
Gang Wrench
Yellow Industrial Paint
Safety Warning Lights

Specifications

Product Attributes	6510 Construction Disc
Approximate Weight With 32 in. Blades	11,500 lbs. (5,216 kg)
Approximate Weight With 36 in. Blades	12,396 lbs. (5,623 kg)
Working Width	10 ft. 9 in. (3.3 m)
Transport Width	11 ft. 11 in. (3.6 m)
Transport Clearance	11 in. (279 mm)
Number of Disc Blades - Front	8
Number of Disc Blades - Rear	8
Blade Diameter	32 in. (813 mm) or 36 in. (914 mm)
Blade Thickness	10 mm or 12 mm
Blade Spacing - Front	17.5 in. (445 mm)
Blade Spacing - Rear	17.5 in. (445 mm)
Blade Scrapers	11.5 in. x 0.375 in. (292 x 9.5 mm)
Gang Angle - Front	20 Degree
Gang Angle - Rear	18 Degree
Gang Shaft	2.5 in. (63.5 mm)
Gang Bearings Standards	Rigid Mount Integral with Frame
Gang Bearings	Oil Bath Bearings
Frame	8 in. x 8 in. x 0.5 in. and 8 in. x 6 in. x 0.5 in. (203 x 203 x 13 mm and 203 x 152 x 13 mm) Welded One-Piece Frame
Transport Axles	5.5 in. (140 mm) Lift Axle, UHMW Bearings
Tire Size	(2) 32/1550 x 16.5 SL
Spindle Size	3 in. (76 mm) Slip-In Spindles
Wheel Hubs	8-Bolt, 7,500 lbs. (3,402 kg)
Hitch	Pintle 360° Swivel Hitch
Lift Cylinder	4.5 in. x 12 in. (114 x 305 mm)
Leveling Cylinder	4.5 in. x 8 in. (114 x 203 mm)
Draft Control Cylinder	4.5 in. x 8 in. (114 x 203 mm)
Adjustment Wrenches	Standard
Safety Warning Lights & SMV Emblem	Standard
Safety Chain Kit	Standard
Spare Tire & Wheel Assembly	Optional
Horsepower Requirements	20 to 30 HP (15 to 22 kW) per Foot
