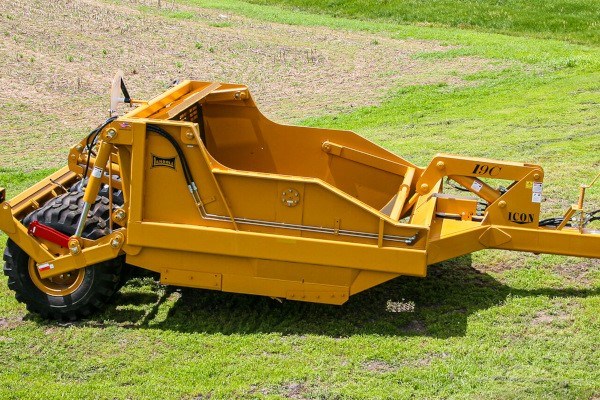

C Series Scraper
19C
Overview:
EARTHMOVING AT ITS BEST
Handle varying soil conditions and get the job done faster for less money with the ICON C Series Pull-Type Scrapers.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 17 or 19 Yard Heaped Capacity
- Fixed Hinge Bit
- Rear Eject Wall
- Cast Hitch with 360 Degree Swivel for Flexibility and Roll-Over Protection
- Quick Hitch for One Man Hook-Up and Disconnect
- 18” Ground Clearance
- Replaceable Cutting Edges
- Fully Assembled at the Factory
- Optional Tandem Hitch Package
- Optional Hydraulic Disc Brakes
- Optional Auxiliary Drawbar
- Yellow Industrial Paint
- Safety Warning Lights
Specifications
| Product Attributes | 19C |
| Approximate Weight | 23,900 lbs. (10,841 kg) |
| Working Width | 11 ft. 0 in. (3.4 m) |
| Capacity - Heaped | 19 yards (14.5 m3) |
| Capacity - Struck | 16.9 yards (12.9 m3) |
| Transport Width | 11 ft. 11 in. (3.6 m) |
| Transport Height | 8 ft. 10 in. (2.7 m) |
| Height With Bowl on Ground | 7 ft. 4 in. (2.2 m) |
| Transport Clearance | 18 in. (457 mm) |
| Overall Length | 27 ft. 6 in. (8.4 m) |
| Cutting Edge | CAT, Replaceable |
| Style | Push-Off Wall Eject -- Rear Lowering |
| Hitch Cast | 360° Swivel |
| Tire Size | (4) 20.5 x 25 |
| Wheel Hubs | 10-Bolt, 25,000 lbs. (11,340 kg) |
| Depth Gauge | Standard |
| Complete Factory Assembly | Standard |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Auxiliary Draw Bar | Optional |
| Tandem Package | Optional |
| Hydraulic Disc Brakes | N/A |
