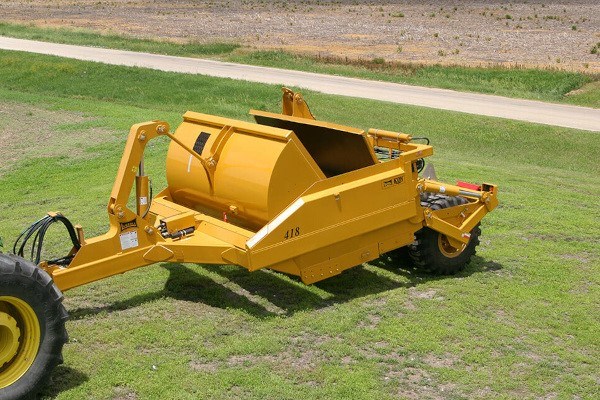

400 Series Scraper
418
Overview:
14 or 18 yard heaped capacity sets the size for these machines. All sizes require 300 HP minimum to operate efficiently and safely. These models incorporate a 360-degree quick hitch that is rated at 600 HP. The full swivel hitch allows for one man hook-up or disconnect and protection in case of a roll-over. These units come fully assembled from the factory. All hydraulic systems are fully charged and are ready for the job site.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 14 or 18 Yard Heaped Capacity
- Fixed Hinge Bit
- Roll Out Eject
- Cast Hitch With 360 Degree Swivel for Flexibility and Roll-Over Protection
- Quick Hitch for One Man Hook-Up and Disconnect
- 18” Ground Clearance
- Replaceable Cutting Edges
- Fully Assembled at the Factory
- Tandem Hitch Package Optional
- Hydraulic Disc Brakes Optional
- Auxiliary Drawbar Optional
- Yellow Industrial Paint
- Safety Warning Lights
Specifications
| Product Attributes | 418 Scraper |
| Approximate Weight | 23,200 lbs. (10,523 kg) |
| Working Width | 11 ft. 0 in. (3.4 m) |
| Capacity - Heaped | 18 yards (13.8 m³) |
| Capacity - Struck | 16.1 yards (12.3 m³) |
| Transport Width | 11 ft. 11 in. (3.6 m) |
| Transport Height | 8 ft. 10 in. (2.7 m) |
| Height With Bowl on Ground | 7 ft. 4 in. (2.2 m) |
| Transport Clearance | 18 in. (457 mm) |
| Overall Length | 27 ft. 6 in. (8.4 m) |
| Replaceable Cutting Edge Center | 7/8" x 16" x 60" |
| Replaceable Cutting Edge Outside | 7/8" x 13" x 35.75" |
| Maximum Cut Depth | 9 in. (229 mm) |
| Lift Cylinder Size | 5" x 22" |
| Gate Cylinder Size | 6-1/2" x 22" |
| Push Off Cylinder Size | 4" x 50" |
| Hydraulic System Rating | 3,000 psi |
| Required Tractor Remotes | 2 Valve System |
| Hitch Type | Cast 360° Swivel |
| Hub & Spindle Rating | 10-Bolt, 25,000 lbs. |
| Tire Size | 20.5 x 25 |
| Safety Warning Lights | Standard LED |
