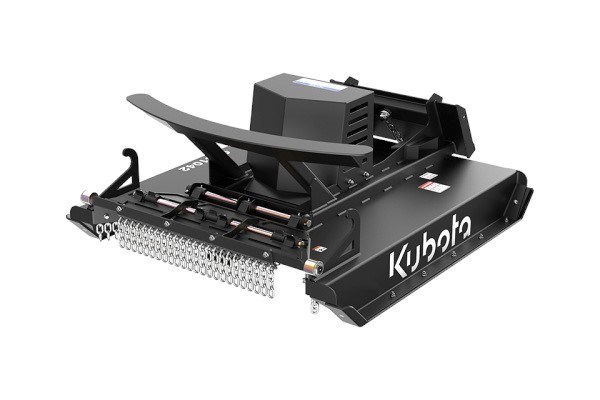

CSC10 Series Compact Skid Cutter
CSC1042
Overview:
Compact for SCL1000
Compact in size but with all the features of our full-size skid cutters
Bi-folding Door
Patented bi-folding retractable front door folds open while cutting brush and trees
Push Bar
Keeps material away from the operator
Cut Capacity
1" Continuous cut capacity with 3" intermittently; Aides in clearing brush
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
| Features | Benefits |
| Case drain | Protects hydraulic motor and seals |
| Front and rear chain guards | Chain guards on the front and rear of deck. Reduces flying debris. |
| Replaceable skid shoes | Protect side plate structure. Shoes are replaceable for convenience |
| 1/2"x4" free-swinging blades | Free-swinging blades protect from obstructions. |
| 3" (8 cm) cutting capacity | Easily cuts brushy areas & trees up to 3" (8 cm) in diameter. |
| Push Bar | Pushes cut trees away from the operator platform. |
| Bi-Folding door | Door will fold open when cutting heavy brush and trees. Covers the cutting chamber when not cutting in heavy brush. |
| Height adjustment safety chain | Provides additional operator protection from flying objects by allowing the Compact Skid Cutter to only be lifted up to 12" (30.5 cm). |
| Surpassed rugged industry standards | All Kubota Cutters have been designed and tested to meet rigorous voluntary testing procedures according to ISO 4254-13. |
| Beveled skid shoes on wings | Reduces gouging the ground when turning. |
Specifications
| Cutter weight with skid shoes lbs (kg) | 630 (286) |
| Hitch Type | CII |
| Cutting width in (m) | 42 (1.07) |
| Overall width in (m) | 51 (1.3) |
| Overall length in (m) | 57 1/2 (1.46) |
| Cutting height in (cm) | 2 1/4 (5.7) to 12 (30.5) infinitely variable |
| Cutting capacity in (cm) | 3 (7.6) Diameter |
| Spindle hub oil capacity oz (L) | 5 1/3 (.16) Approx. |
| Spindle hub oil | EP 80-90 wt. gearlube |
| Standard drive motor gpm (Lpm) | 13-20 (49.2-75.7) flow |
| Hydraulic pressure psi (MPa) | Up to 3000 (20.7) |
| Deck thickness in (mm) | 3/16 (5) |
| Side skirt construction in (mm) | 3/16 (5) Steel |
| Deck wear protection | Four, corner-mounted skid shoes |
| Skid shoe construction in (mm) | 1/4 (6) plate |
| Blade carrier in (mm) | 5/8 (16) plate |
| Blade size in (mm) | 1/2 x 4 (13 x 102) double edge |
| Blade rotation | Counter-clockwise |
| Blade bolt | 1 1/8-12 x 3 7/16 with key |
| Blade tip speed fpm (mps) | 14,680 (74.6) at 20 gpm (75.7 Lpm) |
| Front deck protection | Bi-fold door with single row chain guard |
| Rear deck protection | Single row chain guard w/rubber guard |
| Deck lift height protection | Height adjustment safety chain |
