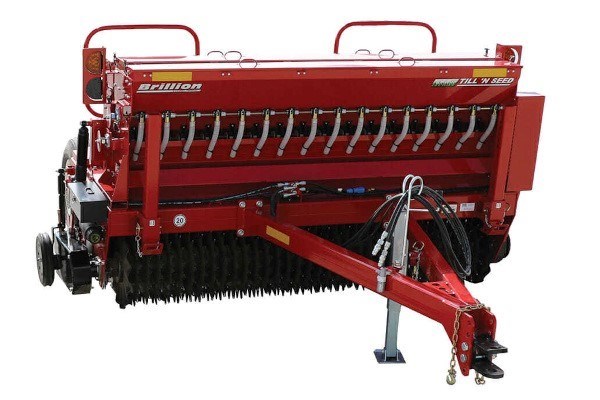

8′ Till ‘N Seed
BPSBA-8
Overview:
THE DETAILS
The Till ‘N Seed is offered in a 6′ three-point hitch model and in 8′ three-point hitch or pull-type models. The 6′ unit comes standard with two seed boxes; the front seed box features large micro-meters with an agitator and can plant a variety of seeds at varying rates in three ranges. The rear seed box features small micro-meters for the precise seeding of very fine, small seeds.
The 8’ models are equipped with a small micro-metered seed box in front, a large micro-metered seed box in the middle, and an optional agitator seed box can be added on the rear.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 8′ Pull-Type and Three-Point Hitch Models Available
- Cat. II Drawbar on Pull-Type Models
- (2) 9.5L x 15-8 Ply Tires on Pull-Type Models
- Three-Point Hitch: Cat. II, III Free Link
- Three-Point Hitch: Cat. II, IIIN, III Quick Coupler
- Hitch Can be Moved Off-Center for Use on Wider Tractors on Three-Point Hitch Models
- Drive and Tillage Rotors Made of Abrasion Resistant Steel
- Tillage Rotor Runs 2.14 Times Faster than Drive Rotor
- #60-2 Drive Chain
- Tillage Rotor Free to Follow Ground Contour
- Rotors Mesh Together for Self-Cleaning Design
- Adjustable Air Shock Pressure for Varying Ground Conditions
- Heavy-Duty 1 1/2″ Sealed Bearings on All Rotor Shafts
- Adjustable Gauge Wheels Control Depth of Tillage Rotor
- Rubber Firming Roller Provides Final Touch for Ideal Seed to Soil Contact
- Small Micro-Metered Front Seed Box for Seeding Smaller Seeds
- Large Micro-Metered Second Seed Box for Planting Larger Seed Varieties
- Optional Third Seed Box: Blade Agitator for Seeding Larger Grass Seed Varieties
- User Friendly Seed Rate Adjustments
- Seed Box Disconnect Pins Disengage Seeding Mechanisms
- Slide-In Seed Calibration Tray Stores on Machine When Not in Use
- Handrail, Step, and Walkboard Provide for Operator Safety
- Convenient Brackets Included for Securing Machine to Trailers
- Integral Parking Stand
- Parking Pin Allows Unit to Maintain Correct Orientation When Unhitched from Tractor on Three-Point Hitch Models
- Electronic Acre Meter Available
- Optional Dual Wheel Kit Available for Pull-Type Models
- LED Safety Warning Lights & SMV Emblem
- Powder Coat Paint
Specifications
| Product Attributes | BPSBA-8 |
| Approximate Weight (Empty) | 5,130 lbs. (2,327 kg) |
| Hitch Type | Cat. II Drawbar |
| Tractor Horsepower Requirement (Minimum) | 45 HP (34 kw) |
| Tractor Lift Capacity Requirement (Minimum) | N/A |
| Overall Width | 10 ft. 8 in. (3.3 m) |
| Working Width | 8 ft. 0 in. (2.4 m) |
| Base Unit Length | 13 ft. 11 in. (4.2 m) Raised; 14 ft. 8 in. (4.5 m) Lowered |
| Unit Height | 6 ft. 8 in. (2.0 m) Raised; 5 ft. 5 in. (1.7 m) Lowered |
| Recommended Speed | 4 to 8 MPH (6.4 to 12.9 km/h) (Condition Dependent) |
| Acres/Hour (100% Efficiency) | 3.9 at 4 MPH, 7.8 at 8 MPH |
| Rotor Axles | 3 in. (76.2 mm) Square Tube |
| Rotor & Roller Bearings | 1.5 in. (38.1 mm) Sealed Bearings |
| Number of Blades (Front) | 36 |
| Number of Blades (Rear) | 37 |
| Blade Diameter (Front) | 19.6 in. (497.8 mm) OD |
| Blade Diameter (Rear) | 18 in. (457.2 mm) OD |
| Blade Material | Abrasion Resistant Steel |
| Blade Spacing | 2.75 in. (69.9 mm) |
| Blade Thickness | 0.25 in. (6.4 mm) |
| Rotor Drive Type | Ground |
| Drive Ratio (Rear) | 2.14:1 |
| Independent Flotation | Standard |
| Tillage Rotor Down Force Adjustability | Standard |
| Drive Type | Number 60-2 Roller Chain |
| Firming Roller (Rear) | 322 lbs. (146 kg) |
| Number of Double-Rib Press Wheels | 25 |
| Independent Flotation | Standard |
| Air Shocks (4) | Standard |
| Air Pressure Range | 20 to 120 psi (138 to 827 KPa) |
| Frame Construction | All Welded Structural Steel |
| Front Seed Box Capacity (Small Micro-Meter) | 2.5 Bu. (88.1 l), 6 in. (152.4 mm) Spacing |
| Second Seed Box Capacity (Large Micro-Meter) | 6.3 Bu. (222.0 l), 6 in. (152.4 mm) Spacing |
| Third Seed Box Capacity (Agitator Box) | 6.3 Bu. (88.1 l) Agitator Box |
| Third Seed Box Agitator Type | Blade Agitator Standard |
| Seed Metering Drive | Positive Ground Driven |
| Electronic Acre Meter | Optional |
| Dual Wheel Kit | Optional |
| Powder Coat Paint, Red | Standard |
| Safety Chain Kit | Standard |
| Safety Warning Lights & SMV Emblem | Standard |
