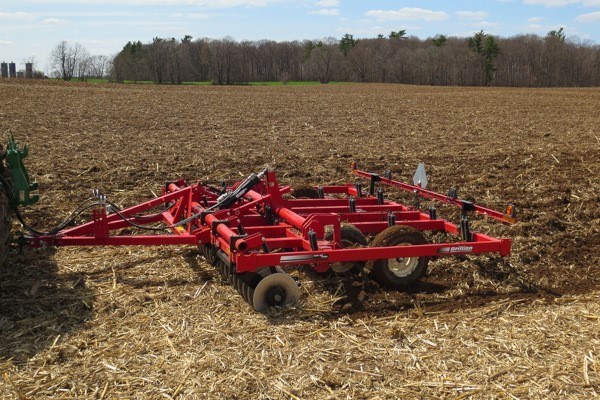

Soil Builder
HSBAW91-1
Overview:
Manage residue, prevent erosion and conserve moisture the economical way. The Soil Builder is available in 5 to 13 shank models.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 5 to 13 Shank Rigid Frame Models Available
- Flip-Flop Style Hitch
- A-Frame Drawbar
- Ratchet Jack Frame Leveling
- Single Point Depth Control
- 4" x 4" Square Tube Weighted Frame
- 29" Under Frame Clearance
- Walking Tandem Axles Provide for a Smooth Ride (Model Dependent)
- 20" Coulter Blades Spaced at 7.5"
- 7.5" Solid Cast Iron Spools Provide Extra Weight to Cut Through the Toughest Residue
- 1.5" Square Gang Bolt Prevents Coulters from Sliding in Wet Conditions
- Hydraulic Depth Control for Coulters (Model Dependent)
- Dual Nested Spring Shanks Trip up to 5.5"
- Spring Pressure/Trip Resistance is Adjustable from 550 to 825 lbs.
- Maximum Operating Depth is 10"
- One Piece 4" Twisted Shovels Standard Equipment
- Safety Warning Lights
- Powder Coat Paint
Specifications
| MODEL | HSBAW91-1 |
| Approximate Weight | 5,574 lbs. (2,528 kg) |
| Working Widtd | 11 ft. 3 in. (3.61 m) |
| Transport Widtd | 11 ft. 10 in. (3.61 m) |
| Transport Height | 5 ft. 7 in. (1.70 m) |
| Overall Lengtd | 19 ft. 3 in. (5.87 m) |
| Number of Coulter Blades | 19 |
| Coulter Blade Diameter | 20 in. (508 mm) |
| Coulter Blade tdickness | 7 ga. |
| Coulter Blade Spacing | 7.5 in. (191 mm) |
| Coulter Bearings | Self-Aligning Flange Type |
| Coulter Protection | Compression Coil Spring |
| Coulter Gang Bolt | 1.5 in. (38 mm) Square |
| Number of Shanks | 9 |
| Shank Mount | Dual Nested Spring |
| Shank Type | Parabolic |
| Shank Spacing | 15 in. (381 mm) |
| Shank Working Deptd | Maximum of 10 in. (254 mm) |
| Spring Pressure/Trip Resistance | 550 lbs. to 825 lbs. (248 kg to 371 kg) |
| Chisel Points Available | 4 in. (102 mm) Twisted Shovels |
| Under Frame Clearance | 29 in. (737 mm) |
| Frame Structure | 4 in. x 4 in. x .25 in. (102 x 102 x 6.35 mm) |
| Rockshaft Pivot Bearings | Two Piece Cast Iron |
| Transport Axle Type | Walking Tandem |
| Main Frame Cylinders | 3.5 in. x 16 in. (89 x 406 mm) |
| Main Frame Cylinder Control | External Deptd Stop |
| Coulter Deptd Cylindersl | 3 in. x 8 in. (76 x 203 mm) |
| Coulter Deptd Cylinder Control | Deptd Control Segments |
| Tires | (4) 11L x 15-8 Ply |
| Hitch Pin Hole Diameter | 1.563 in. (40 mm) Flip-Flop Style Hitch |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 15 to 20 HP (11 to 15 kW) per Shank |
| Recommended Operating Speed | 5 to 6.5 MPH (8 to 10.5 km/h) |
